Remote Button Components

WiFi Shield $29.00

TTL UART to WiFi  $49

WiFi Shield WiShield V2.0 for Arduino  $55

Wi-Fi Module Features

• 802.11b Wi-Fi certified
  • 1Mbps and 2Mbps throughput speeds
• Supports both infrastructure (BSS) and ad hoc (IBSS) wireless networks
• Ability to create secured and unsecured networks
  • WEP (64-bit and 128-bit)
  • WPA/WPA2 (TKIP and AES) PSK
• Low power usage
  • Sleep mode: 250μA
  • Transmit: 230mA
  • Receive: 85mA

Pin Usage

• SPI
  • Slave select (SS) : Arduino pin 10 (port B, pin 2)
  • Clock (SCK) : Arduino pin 13 (port B, pin 5)
  • Master in, slave out (MISO) : Arduino pin 12 (port B, pin 4)
  • Master out, slave in (MOSI) : Arduino pin 11 (port B, pin 3)
• Interrupt (Uses only one of the following, depending on jumper setting)
  • INT0 : Arduino pin 2 (port D, pin 2)
  • DIG8 : Arduino pin 8 (port B, pin 0)
• LED : Arduino pin 9 (port B, pin 1)
  • To regain use of this pin, remove the LED jumper cap
• 5V power
• GND

Antenna $3.99

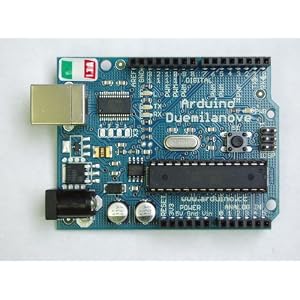

Arduino  $24.99

The Arduino Duemilanove ("2009") is a microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

Big Red Button  $2.30  16mm

Power Supply 5VDC $1.00
